EAST Dfg-Eb Smart Variable Frequency Vertical Single Stage Pump

  • 1
  • 2

Brand Name : EAST

Model Number : Dfg-Eb

Place of Origin : China

MOQ : 1

Price : $ 200 - 1000

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Packaging Details : Wooden box

Supply Ability : 100

Delivery Time : 5-8 weeks

Flow Range : 2 - 1400 M³/H

Head Range : 5 - 130 M

The Maximum Working Pressure of The Pump : ≤ 1.6MPa

That Is, The Suction Port Pressure + The : ≤ 1.6MPa

Medium Temperature : -15ºC < T ≤ +80ºC. for The Hot - Wate

Ambient Temperature : ≤ 40ºC

Contact Now

Model Flow Rate
(m3/h)		 Head
(m)		 Motor Power
(kW)		 Rotational Speed
(r/min)		 Efficiency
(%)		 Net Positive Suction Head
(m)		 Weight
(kg)		 Installation Dimensions (mm)













H1 H L B Φd C D
DFG40 - 100E/2/1.1 8.8
12.5
16.3		 13.2
12.5
11.3		 1.1 2900 60
67
65		 2.5 38 122 528 320 245 16 150 185
DFG40 - 100E/A/0.75 8
11
14		 10.7
9
7		 0.75 2900 62
65
62		 2.5 36 122 528 320 245 16 150 185
DFG40 - 125E/2/1.5 8.8
12.5
16.3		 21.5
20
17.8		 1.5 2900 54
63
63		 2.5 40 122 573 300 270 16 150 185
DFG40 - 125E/A/1.1 8
11
14		 17
16
14.3		 1.1 2900 52
61
61		 2.5 40 122 528 300 245 16 150 185
DFG40 - 160E/2/2.2 8.8
12.5
16.3		 33.3
32
28		 2.2 2900 50
57
58		 2.5 56 132 619 320 270 16 150 185
DFG40 - 160E/A/1.5 7
10
12		 27
24
22		 1.5 2900 51
56
53		 2.5 65 132 619 320 270 16 150 185
DFG40 - 200E/2/5.5 8.8
12.5
16.3		 51
50
48.5		 5.5 2900 42
50
50		 2.5 100 132 712 380 363 16 150 185
DFG40 - 200E/A/4 8
11
14		 44.7
44
43		 4 2900 44
49
48		 2.5 80 132 707 380 335 16 150 185
DFG40 - 200E/B/3 7
10
12		 39
38
36		 3 2900 43
48
47		 2.5 80 132 672 380 305 16 150 185
DFG40 - 250E/2/11 8.8
12.5
16.3		 81.8
80
77.5		 11 2900 34
41
45		 2.5 180 132 868 450 435 16 150 185
DFG40 - 250E/A/7.5 8
11
14		 71.5
70
68		 7.5 2900 35
40
42		 2.5 135 132 719 450 363 16 150 185
DFG40 - 250E/B/5.5 7
10
13		 61.5
60
56		 5.5 2900 34
39
40		 2.5 126 132 719 450 363 16 150 185


Overview


The DFG series (with hot - water types derived from it) of pipeline pumps is carefully designed by our company using hydraulic models and according to the needs of various users under different operating conditions. The product quality complies with the standard GB/T 5657 - 1995 Technical Conditions for Centrifugal Pumps - Class III.


For the DFG series pipeline pumps, the direct connection between the motor and the pump simplifies the intermediate transmission structure and enhances the running stability. With a pipeline - type structure, the inlet and outlet of the pump can be installed at any position and in any direction of the pipeline, just like valves. Compared with ordinary horizontal pumps, it reduces the floor space by 30%. It also features low running noise and small vibration, significantly extending the service life of vulnerable parts. This type of pump is widely favored in the market for its stable performance, energy - saving feature, small footprint, and compact structure.

Applications


  • Suitable for industrial water supply, urban water supply, and water supply for high - rise buildings.
  • For boosting pressure in fire - fighting pipelines.
  • For the circulation of hot and cold water in air - conditioning systems.
  • For long - distance water transportation.
  • For circulation, boosting, and transportation in the production process, and also suitable for use with various water supply and drainage equipment, boilers, etc.

Operating Conditions and Scope


  • The volume of insoluble solids in the suction and discharge medium should not exceed 1% of the total volume, and the particle size should be ≤ 0.2mm.
  • Flow range: 2 - 1400 m³/h.
  • Head range: 5 - 130 m.
  • The maximum working pressure of the pump system should be ≤ 1.6MPa, that is, the suction port pressure + the pump head ≤ 1.6MPa.
  • When the inlet pressure is greater than 0.8MPa, the materials of the pump body and pump cover need to be changed, such as ductile iron QT450 - 10.
  • Medium temperature: -15ºC < T ≤ +80ºC. For hot - water types, 80ºC < T < 105ºC. Special orders are required when the temperature is equal to or higher than 105ºC.
  • Ambient temperature: ≤ 40ºC.
  • Motor insulation class: Class B or Class F.
  • Motor protection class: IP54 or IP55.

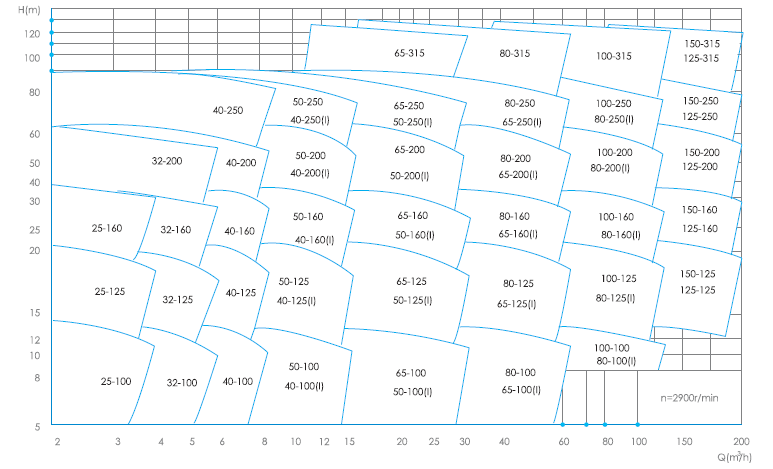

Type spectrum diagram

EAST Dfg-Eb Smart Variable Frequency Vertical Single Stage Pump

EAST Dfg-Eb Smart Variable Frequency Vertical Single Stage Pumpstructure diagram

EAST Dfg-Eb Smart Variable Frequency Vertical Single Stage Pump


Serial Number, Name and Material List

EAST Dfg-Eb Smart Variable Frequency Vertical Single Stage Pump

Comparison Table of Features between DFG and Ordinary Pipeline Pumps

EAST Dfg-Eb Smart Variable Frequency Vertical Single Stage Pump

Pump installation dimension drawing

EAST Dfg-Eb Smart Variable Frequency Vertical Single Stage Pump
